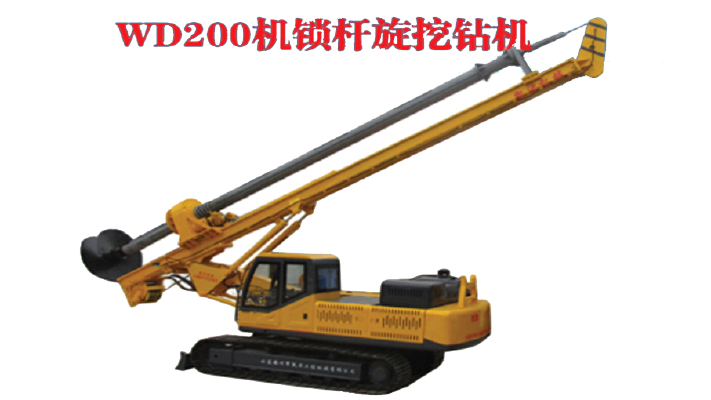

WD-200 machine lock rod rotary drilling machine product introduction WD-200 lock rod rotary drilling rig with Weichai, Yuchai engine power, the East is red, Cummings stability and energy efficient, can provide a strong impetus for the rig. Double power head can be installed to ensure efficient drilling machine WD-200 lock rod rotary drilling rig. The single torque 48000N.M, double power the head of 96000N.M, the double power head can be effectively improved in the layer of rock drilling efficiency. The use of the drill pipe WD-200 machine lock rod rotary drilling rig, configuration of various barrel drill, short spiral drill, and optional long spiral drill, drill change easily. WD-200 machine lock rod rotary drilling windlass arrangement to improve the stability of the mast. The WD-200 machine lock rod rotary drilling rig control system is mature, can realize the automatic verticality and hole depth monitoring, and to achieve the real-time monitoring. The drilling depth and single footage of automatic measurement The amount of new drilling mast and display. The automatic verticality control system can make drilling more easily and more stable. Equipped with air-conditioner to create a comfortable operating environment WD-200 machine lock rod rotary drilling rig and spacious cab. The instrument displayed at a glance. The device is convenient and simple manipulation, allowing users to use more convenient. The lock rod rotary machine WD-200 drilling rig engine, hydraulic pump, hydraulic motor, hydraulic valve, reducer, key parts chassis parts and electronic control devices such as the well-known brands at home and abroad. The quality of high-quality parts, let Kaiao rotary drilling rig is more stable and reliable. The detailed parameters: Kaiao machine lock rod rotary drilling rig WD-200 main parameters of rotary drilling machine lock rod the output torque of 90KN.M-150KN.M diameter 400-1800MM drilling rig drilling depth 1-40M drilling speed 6-40rpm pressurized cylinder pressure 100-150KN pressure cylinder lifting force of main hoist lifting 140-200KN Single rope 15t mast tilt angle of / - 5 DEG mast rake angle of / - 5 DEG working pressure 16-32M PA maximum walking speed 3-5km/h machine weight 20T-24T machine size 13 x 2.5 x 3.5 meters engine types of Weichai, Yuchai, the East is red, Cummins form turbocharged or in cold rated power 88-130KW
